Référence : SNA-540W

Inspection Camera Waterproof Sony CCD sensor 540 lines white LED

Short description :

  • Sensor Sony Super HAD CCD 540 lines
  • High resolution
  • Waterproof 50m
  • IP68
  • White LED lighting
  • Stainless steel camera
  • Weight 96 grams

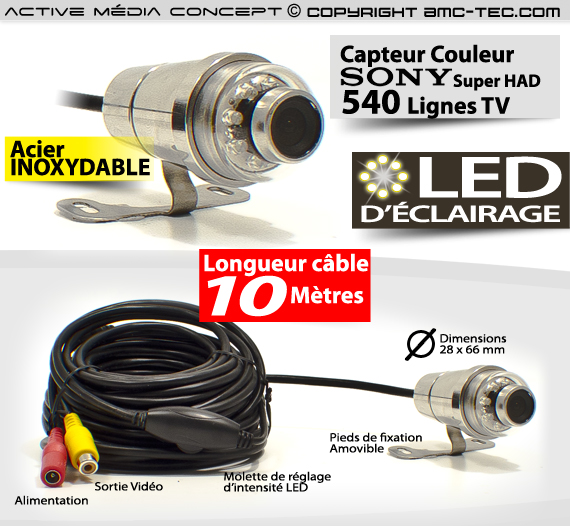

Micro Camera 1/3 Super HAD CCD High Resolution Inspection color 540 lines.

Our micro inspection camera with a resolution of 752 (H) x 582 (V) pixels, a high resolution image quality.

Its diameter is 66 mm x 28 ⌀, or around the sensor is embedded 3.6 mm, 8 White LED adjustable in intensity thanks to its drive position to put out the maximum position, angle of view is 90 °

Its technical features makes it a mini inspection camera whose video image is net of 15 cm to over 10/15 Meters.

Used with these devices, the camera can be powered at 12 volts and delivers its A / V signals over a single cable with a length of 10 meters.

This micro inspection camera allows you to inspect the status of all inaccessible areas, it can also be used as part of the video covert surveillance or any other personal use.

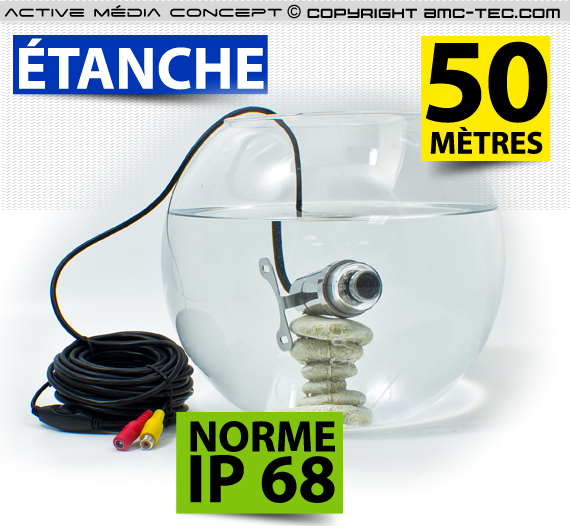

The micro inspection camera is stainless steel (specially planned for the Navy in mink), to a degree of protection IP68. (Protection against ingress of dust (waterproof), protected against the effects of prolonged immersion under pressure).

Compatible with our recorders and can be accompanied by our independent kits transmitter / receiver transmission.


 Capteur 1/3" Sony superHAD CCD
 Résolution  540 lignes TV
 Nombres de pixels  (H) 752 X (V) 582
 Indice de protection  IP68 (étanche)
 LED  8 LED d'éclairage blanche
 Alimentation  12V ± 10% DC
 Gamma  0.45
 Balance des blancs auto
 Gain auto
 B.L.C. auto
 S/N Ratio  plus de 46 dB
 Consommation  130 mA
 Objectif  3.6 mm
 Dimensions ⌀  28 x 66 mm
 Longueur câble 10 mètres
 Poids  96 grammes
 Revêtement  acier inoxydable
